Automatic seamer with Manual feeding lid(Automatic seaming）Parameter& Features
1, Main parameter
Dimension :：2300x1000x2000mm
Speed： 15-25 cpm
Can diameter：52-180mm
Can height ：60-330mm
Motor power：380V,2.2KW
Air compressor ：No less then 0.6Mpa
Total weight：1100 kg
2, Main Features

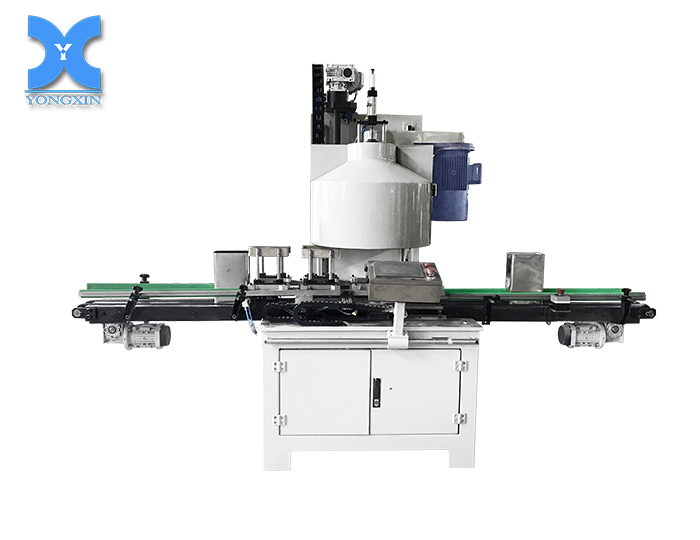

※ This automatic seamer is mainly included by machine frame, Input conveyor,Can clamping device, Seaming head（Four seaming roller）,, output conveyor,pneumatic system and control system.
※ The electrical parts,PLC of this machine is all belong to Schneider brand
※After change mould can used for seaming different kind of diameter cans.
※Conveyor is taken plastic train type which protect the cans from damage during transmission.
※ Can height adjustment automatically by PLC.

Operation Mode	Automation
Output Capacity	15-25CPM
Diameter Range	52-180(mm) 1-5L Square
Height Range	60-330(mm) Height can be adjustable
Lid Feed-in Mode	Manually Feed-in
No. of Seaming Roller	4-Seaming Roller
PLC Device	Built-in
Touch Panel Control System	Built-in 7'' Color Display (English Language Interface)
Power Supply	3P4W 380V
Motor Power	2.2KW
Air Pressure Required	No less 0.6MPa
Construction Size	2300 x 1000 x 2000 (mm)
Machine Weight	1100kg
