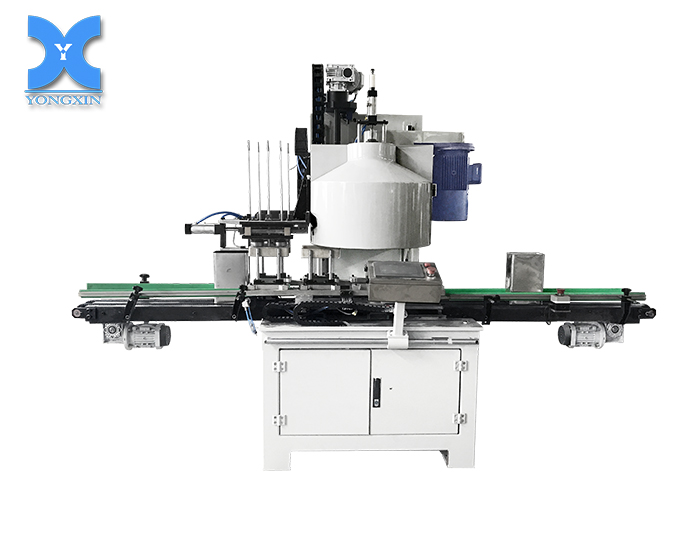

Six - wheel automatic lid - off automatic sealing machine

Classification of the genus:Automatic Rectangular Can Seamer
Click times:
Release date:2018/06/06
Online inquiry

Detailed introduction

Main Features
※ This automatic seamer is mainly included by machine frame, Input conveyor, Can clamping device, Seaming head（Six seaming rollers）,Can lid separating device, output conveyor, pneumatic system and control system.
※ The electrical parts, PLC of this machine is all belong to Schneider brand
※After change mould can used for seaming different kind of diameter cans.
※Conveyor is taken plastic train type which protect the cans from damage during transmission.
※ Lid feeding way: Spiral feeding way or Air suck feeding way .with Detection system to make sure the lid feeding correct and stable.
※ Can height adjustment automatically by PLC.

Operation Mode	Fully Automation
Output Capacity	30-35CPM
Diameter Range	1-5L Square
Height Range	200-450(mm) Height can be adjustable
Lid Feed-in Mode	Screw Style / Suction Cup Style Automatic Feed-in (Auto Detection)
No. of Seaming Roller	6-Seaming Roller
PLC Device	Built-in
Touch Panel Control System	Built-in 7'' Color Display (English Language Interface)
Power Supply	3P4W 380V
Motor Power	2.44KW
Air Pressure Required	No less 0.6MPa
Construction Size	2300 x 1400 x 2200 (mm)
Machine Weight	2000kg
