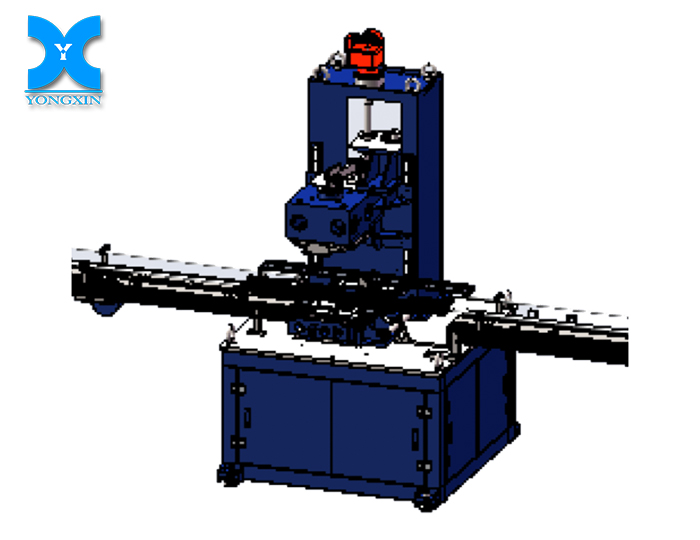

Small square tank automatic flanging machine

Detailed introduction

This machine is used for flanging the Rectangular cans .( Can be flanging both sides at same time and install with servo motor transmission system )

Operation Mode	Fully Automation
Output Capacity	25-32CPM
Diameter Range	1-5L Square Can
Height Range	150-330 （mm）Height can be adjustable
No. of Flanging Die Set	2-Flanging Die Set
Flanging Mode	Servo-Drive Sync Both Sides
Auto Lubrication Sys.	Built-in
PLC Device	Built-in
Touch Panel Control System	Built-in 7''Color Display (English Language Interface)
Air Presure Required	No less 0.6MPa
Motor Power	1.2KW
Power Supply	Three phase four wire 380V
Construction Size	1500 x 800 x 2300 （mm）Tailor-made Provided
Machine Weight	1200kg
