Automatic production line of generous tank

Classification of the genus:Automatic Square Can Making Line
Click times:
Release date:2018/06/06
Online inquiry

Detailed introduction

Machine Features:
1.We adopt PLC, servo motor, frequency conversion motor to realize full-automatic control;
2.Two kinds of seamer, spiral type and vacuum suck type for lid separating, Detection device ensures good lids separating;
3.There are detecting and protecting devices for right position movements, can stuck and every function, it ensures whole production line smooth and safe;
4.Height can be adjusted automatically by PLC, automatic terminal detection it makes mould, changing easy and fast.

Line Including	Can Standing-up input conveyor-Side Seam Locating-Square Forming-Panelling-Flanging-Upending-Flanging-Bottom Seaming-Upending-Top Seaming
Operation Mode	Fully Automation
Output Capacity	25-32CPM
Can Vol. Type	10-25L Square
Height Range	250-480 （mm）Height can be adjustable
Lid Feed-in Mode	Screw Style Auto Feed-in / Suction Cup style Auto Feed-in (Auto Detection)
No. of Seaming Roller	6-Seaming Roller / 8-Seaming Roller
Seaming Mode	High Precision Double Seaming/Tripple Seaming
Auto Lubrication Sys.	Built-in
PLC Device	Built-in
Touch Panel Control System	Built-in 7''Color Display (English Language Interface)
Auto Feed-Can-in Detection	Built-in
Air Presure Required	No less 0.6MPa
Motor Power	30KW
Power Supply	Three phase four wire 380V
Construction Size	13000 x 1600 x 2700 （mm) Tailor-made Provided
Machine Weight	17000kg

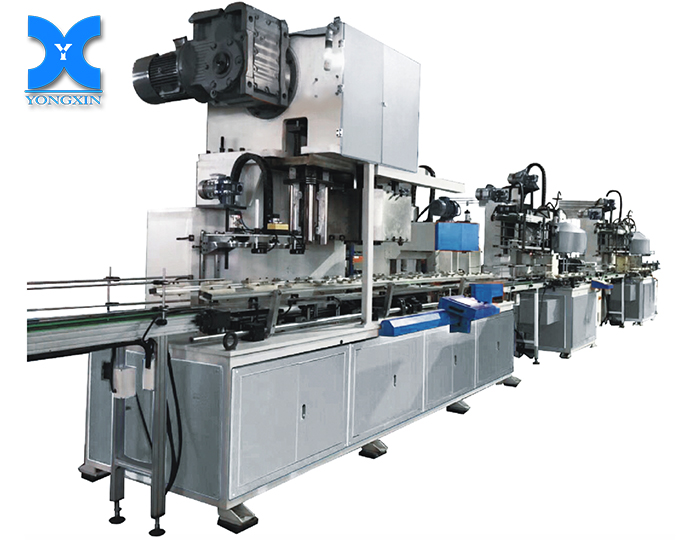

FGX0 大方罐线-Model.jpg
