Convenient automatic barrel production line

Classification of the genus:Automatic Pail Can Making Line
Click times:
Release date:2018/06/06
Online inquiry

Detailed introduction

Machine Features:
1.We adopt PLC, Servo motor, frequency conversion motor to realize full-automatic control;
2.With Mechanical cam transmission, cam clamping & holding cans, cam conveying cans, speed is continuously adjustable, machines run stably and reliably;
3.There are detecting and protecting devices for right position movements, can stuck and every functions. It ensures whole production line smooth and safe;
4.Height can be adjusted automatically by PLC, automatic terminal detection, it makes mould changing easy and fast.

Line Including	Can Standing-up input conveyor-Expanding-Flanging&Pre-curling-Curling-Upending-Bottom Seaming-Earlug Spot Locating-Earlug Welding
Operation Mode	Fully Automation
Output Capacity	25-30CPM
Can Vol. Type	Open Head Steel Pail Bucket
Height Range	200-450 （mm）Height can be adjustable
Lid Feed-in Mode	Dual-knife style Auto Feed-in (Auto Detection)
No. of Seaming Roller	6-Seaming Roller
Seaming Mode	High Precision Double Seaming
Auto Lubrication Sys.	Built-in
PLC Device	Built-in
Touch Panel Control System	Built-in 7''Color Display (English Language Interface)
Auto Feed-Can-in Detection	Built-in
Air Presure Required	No less 0.6MPa
Motor Power	30KW （Auto Double Earlug Welder 60KW）
Power Supply	Three phase four wire 380V
Construction Size	16500 x 1800 x 2900 （mm) Tailor-made Provided
Machine Weight	20000kg

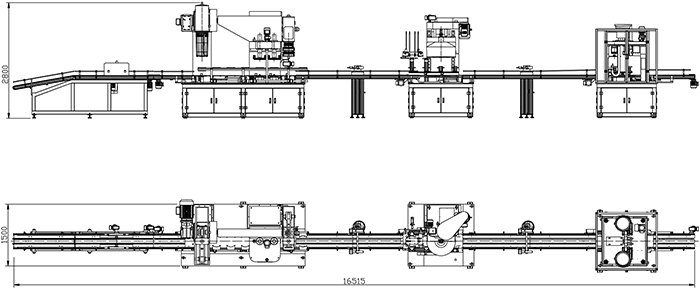

07-08 花兰桶自动生产线图纸.jpg
